Demonstration of Outstanding Performance

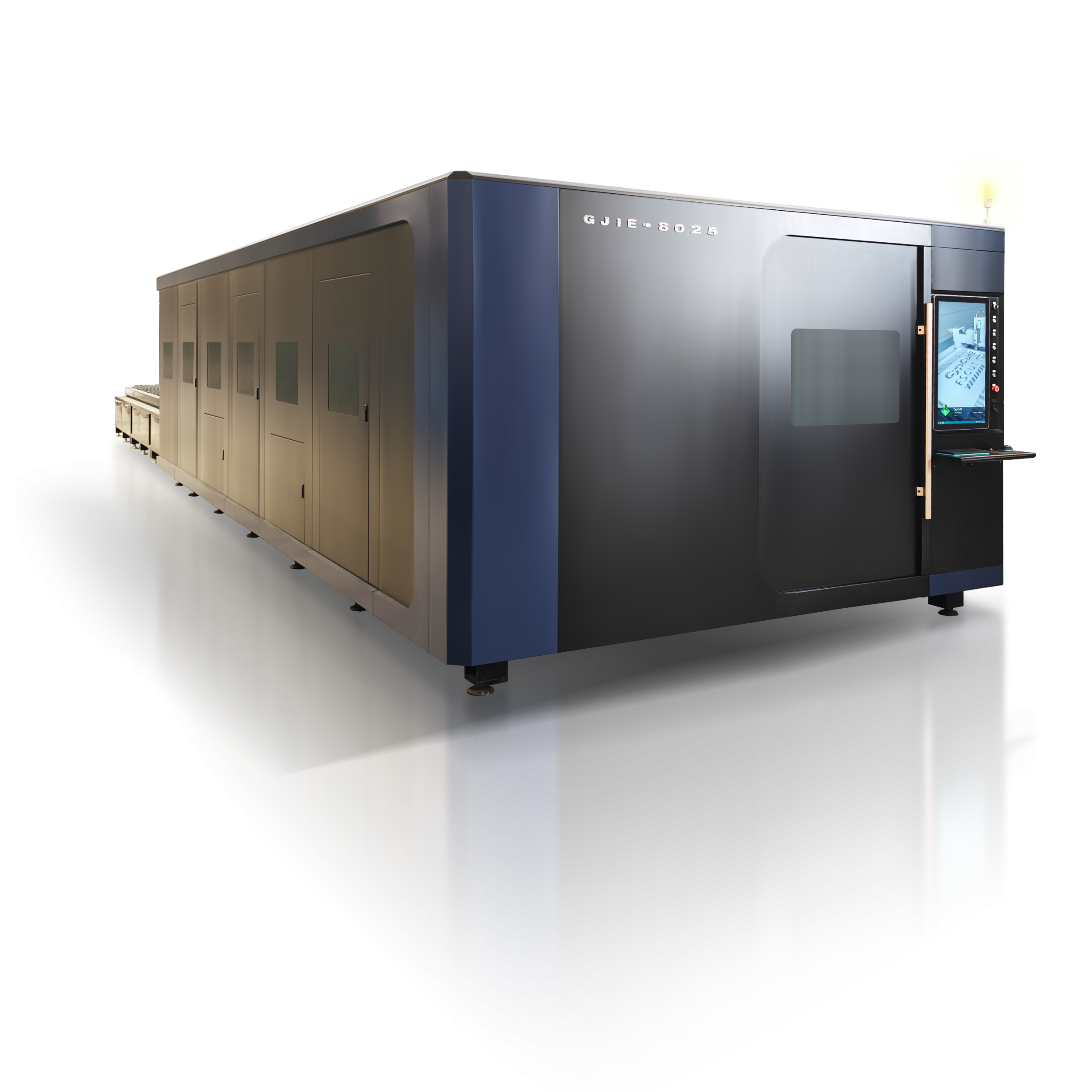

This fully enclosed laser sheet cutting machine with exchange tables is suitable for mass cutting of thick metal sheets. Alternating dual tables boost productivity while greatly ensuring safety. Equipped with Sky Eye system, it maximizes the utilization of leftover materials.
Sample Display
Technical Parameters
| Machine model | ET-8025 | |||
|---|---|---|---|---|
| Basic Information | Cutting Area | 2550mm × 8050mm | ||
| Table Load Capacity | 2000kg | |||
| Max. Linear Speed | 100m/min | |||
| Max. Synchronous Speed | 140m/min | |||
| Max. Linear Acceleration | 1G | |||
| Max. Synchronous Acceleration | 1.5G | |||
| Positioning Accuracy | ±0.03mm | |||
| Repositioning Accuracy | ±0.01mm | |||
| Machine Bed Structure | Mortise and tenon welding + quenching + aging treatment | |||
| Crossbeam Structure | Aviation aluminum profile crossbeam | |||
| Linear Guide | Shangyin brand | |||
| Mechanical Configuration | Rack & Pinion | YYC | ||
| Independent Fire Prevention | 6000W (with fireproof and fire extinguishing) / 1000-3000W (without) | |||
| Pendant Control | Available | |||
| Automatic Lubrication Function | Available (11-point lubrication) | |||
| Laser Source Abnormal Alarm | Available | |||
| Cutting Abnormal Alarm | Available | |||
| Safety Configuration | Gas Low Pressure Alarm | Available | ||
| Chiller Abnormal Alarm | Available | |||
| Water Chiller Abnormal Alarm | Available | |||
Applications
